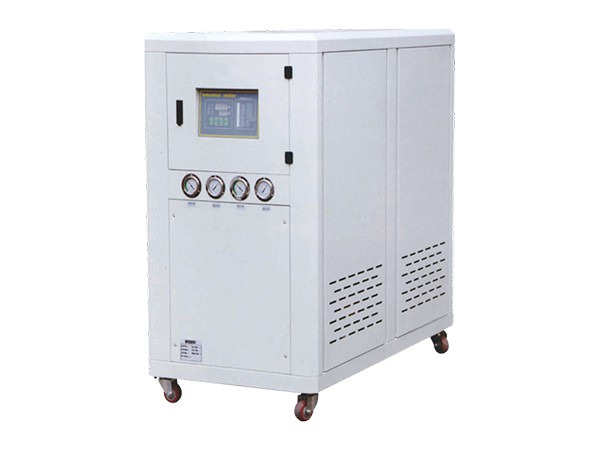

Industrial Water Chiller
The water-cooled chiller, also known as a water-cooled box-type industrial chiller, is a stable and efficient cooling solution for industrial production. It effectively removes heat through a circulating water system and must be used together with a cooling tower or other heat-dissipation equipment. Water chiller offers higher cooling efficiency and operates with lower noise than air-cooled chillers.
Specifications
| Model | |||||||||
| Cooling Capacity | kW | 9.1 | 15 | 29.5 | 44 | 58.5 | 86 | 116 | 140 |
| 10³Kcal/h | 7.9 | 12.9 | 25.6 | 38 | 54.4 | 74.1 | 100 | 120 | |
| Power Supply (V/ph/Hz) | 380/3/50 | ||||||||
| Input Power (kW) | 3.1 | 4.7 | 9.6 | 15 | 19.8 | 28.6 | 42.8 | 58.8 | |
| Compressor Type | Scroll type | ||||||||
| Compressor Power (kW) | 2.25 | 3.75 | 7.5 | 11.9 | 15.5 | 22.5 | 30 | 3.7.5 | |
| Pump Power (kW) | 0.55/1.1 | 0.55/1.1 | 1.1/1.5 | 1.5/2.2 | 2.2/3 | 3/4 | 5.5 | 5.5 | |
| Water Flow Rate (m³/h) | 3.6/12.5 | 3.6/12.5 | 12.5/20 | 20/25 | 25/30 | 30/40 | 45 | 45 | |
| Evaporator Type | Coil type | Coil type | Shell and tube type | Shell and tube type | |||||
| Water Tank Volume (L) | 80 | 80 | 150 | 150 | 200 | 200 | 300 | 300 | |
| Condenser Type | Shell and tube type | ||||||||
| Refrigerant | R22 | ||||||||
| Flow Control | Expansion valve | ||||||||
| Protection | Pressure overload protection | ||||||||
| Remark | The above cooling capacities are based on the following conditions: Ambient temperature: 35°C , Water inlet temperature: 12°C, Water outlet temperature: 7°C. | ||||||||
Features
- Includes multiple protection functions such as phase loss and reverse phase protection, pump reverse and overload protection, compressor reverse rotation, overload and low-pressure protection, high-pressure condenser protection, and a compressor start delay safety device.
- Equipped with reliable and high-quality imported compressors for stable, quiet, and energy-efficient operation.
- Microcomputer-controlled water temperature adjustment ranging from +5°C to +35°C, with an accuracy of ±1°C.
- Condenser and evaporator are engineered to offer improved heat transfer performance.
- Includes a stainless-steel insulated water tank for easier cleaning and maintenance.
- Ultra-low temperature models can reach below -15°C. Acid- and alkali-resistant versions are available upon request.
