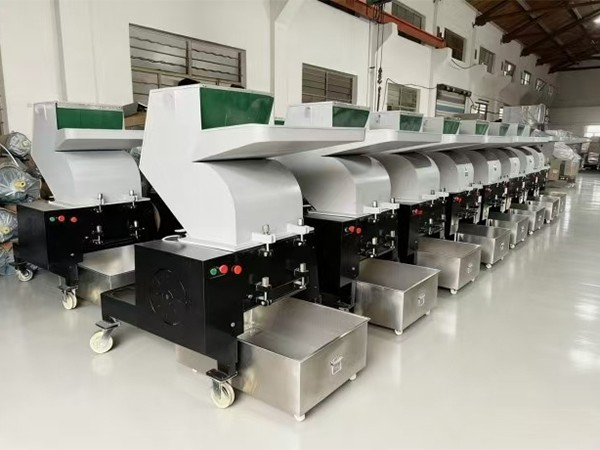

Flat Type Plastic Crusher
The flat-type plastic crusher, used as crushing machine for plastic processing, features a flat blade structure that is positioned between claw blades and straight blades. The strong shearing force of claw blades and the smoother cutting performance of flat blades are integrated together for a better crushing performance. It is ideal for processing medium-hard plastic sheets and pipes, but can also handle injection runners and leftover molded materials. The plastic crushing machine can be used for a wide range of thermoplastics such as PP, PE, PVC, and PET. It can process materials ranging from thin sheets to thicker wall pipes and profiles.
Specifications
| Model | |||||||
| Crushing Chamber (mm) | 230×200 | 310×200 | 410×235 | 515×290 | 610×320 | 815×470 | |
| Crushing Capacity (kg/h) | 100~150 | 150~200 | 200~250 | 300~350 | 350~450 | 450~600 | |
| Stationary Cutter | 2 | 2 | 2 | 2 | 4 | 4 | |
| Rotary Cutter | 6 | 9 | 12 | 15 | 18 | 24 | |
| Power | kW | 4 | 5.5 | 7.5 | 11 | 15 | 22/30 |
| HP | 5 | 7.5 | 10 | 15 | 20 | 30/40 | |
| Dimensions (L×W×H) (cm) | 97×61×120 | 103×72×139 | 103×84×139 | 132×101×183 | 132×111×183 | 173×149×230 | |
| Net Weight | 290 | 435 | 500 | 900 | 970 | 2000 | |
Features
- The flat blade structure sits between claw and straight blade designs, making it suitable for crushing sheets, pipes, profiles, boards, packaging materials, and similar plastic products.
- Sealed bearings are used to maintain stable rotation and extend bearing service life.
- The blade design supports uniform particle size after crushing.
- The blade holder has undergone shrink-fit treatment to improve the stability of its structure and provide a cleaner appearance.
Our factory has over 30 sets of CNC lathes in the production of plastic processing equipment, such as feeding sawing machine, CNC gantry machining center, CNC screw milling machine, CNC deep-hole boring machine, and cylindrical grinder. Meanwhile, with the adoption of more technologies into plastic recycling, CAD/CAM continues to grow in importance. Thus during the whole manufacturing process, our experienced engineers and technicians utilize CAD/CAM engineering approaches to optimize the entire operation. This allows us to supply high quality plastic machinery with optimal performance.
