Plastic Dewatering Machine (Plastic Dryer)

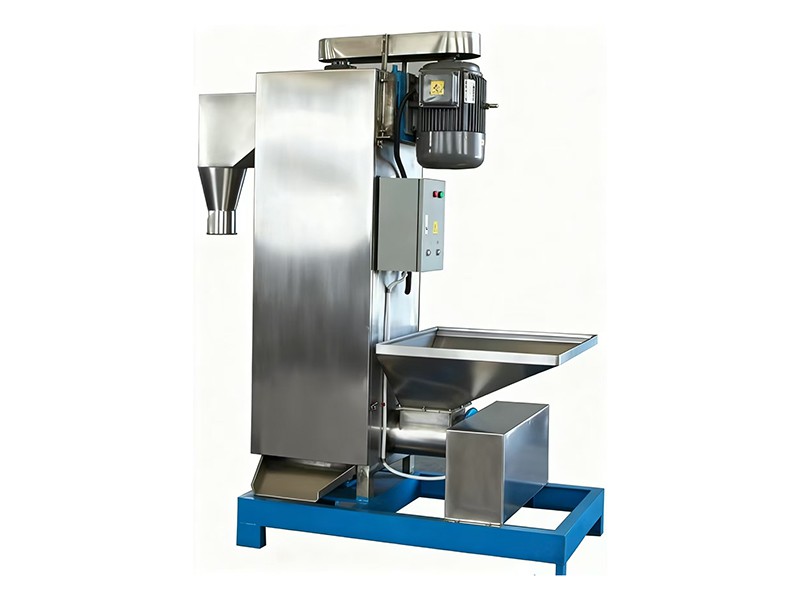

After crushing and washing, plastic materials still contain surface moisture. The dewatering machine removes this excess water at high speed before the next processing step. It is installed after coarse washing, crushing, and rinsing stages. Inside the machine, a screw pushes the material forward while centrifugal force separates water from the plastic. The material is discharged automatically once dewatering is complete. Rotor and screen configurations can be adjusted according to the material type. For automatic feeding, the system can be combined with a lifting conveyor.
Application
Suitable for drying flakes and granules made from PET, ABS, PC, PS, PA, PP, PE, and PVC.
Specifications
| Model | Power (Optional) (kW) | Output Capacity (t/h) | Dimensions (mm) |
| HS-LP | 7.5 (11) | 1-1.5 | 1400×1000×2200 |
| HS-HJ | 11 (15) | 1.5-2 | 1500×1100×2250 |
Also used for PET, ABS, PC, PS, PA, PP, PE, and PVC flakes and granules.

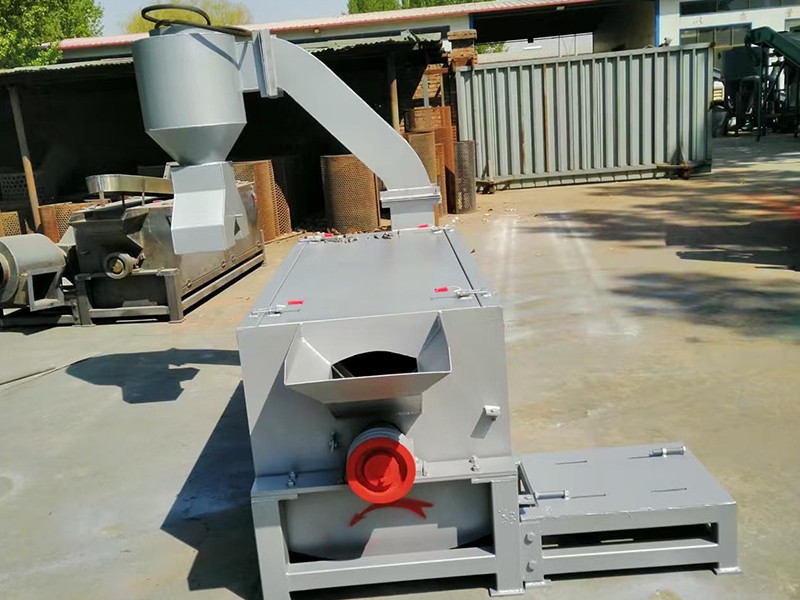

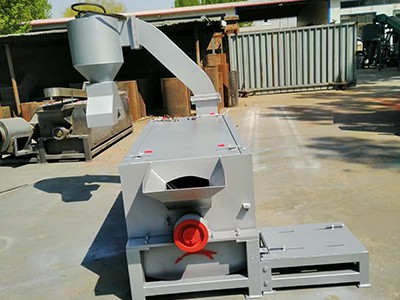

The horizontal dewatering machine is suitable for softer plastic flakes and granular recycled materials.
Specifications
| Model | Power (kW) | Output Capacity (t/h) | Dimensions (mm) |
| 600 | 18.5 | 1-1.5 | 2500×1200×1500 |
| 800 | 30 | 2-3 | 3000×1500×2000 |
Features
- Removes up to 95% of surface moisture with high efficiency and low power consumption.
- Can be connected to automatic conveying equipment to support more integrated production lines.
- Dual discharge outlets in horizontal dewatering machine improve workflow efficiency; structure is simple and easy to disassemble for cleaning.
- Stainless steel screen (customizable mesh size). The horizontal dewatering machine is constructed of carbon steel welding for durability.
- Equipped with a copper-winding motor for stable power and longer service life.
- Overload and power interlock protection included. The system shuts down automatically if abnormalities occur, ensuring safe operation.
