Electric Induction Heating System

Electric Induction Heating System

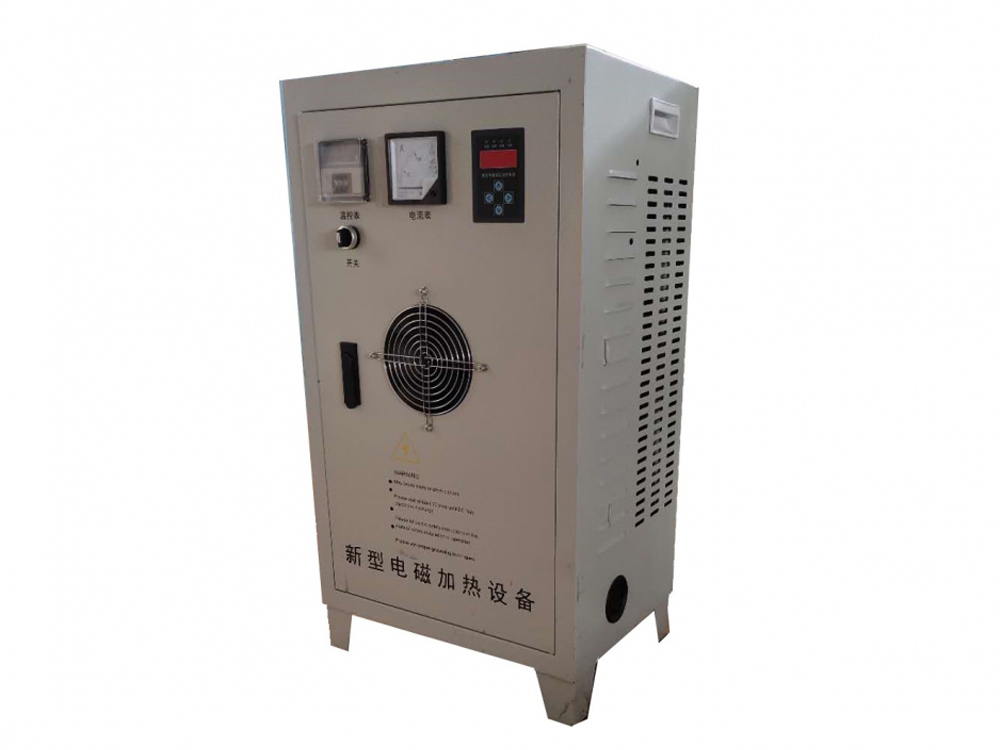

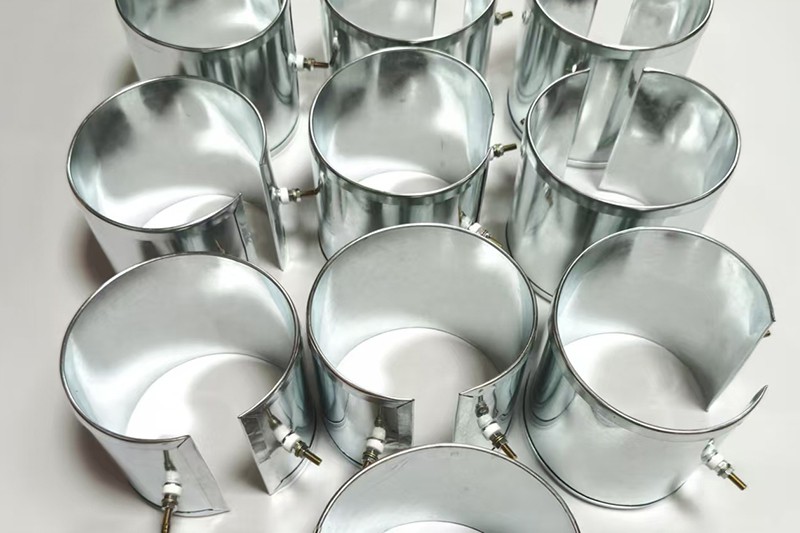

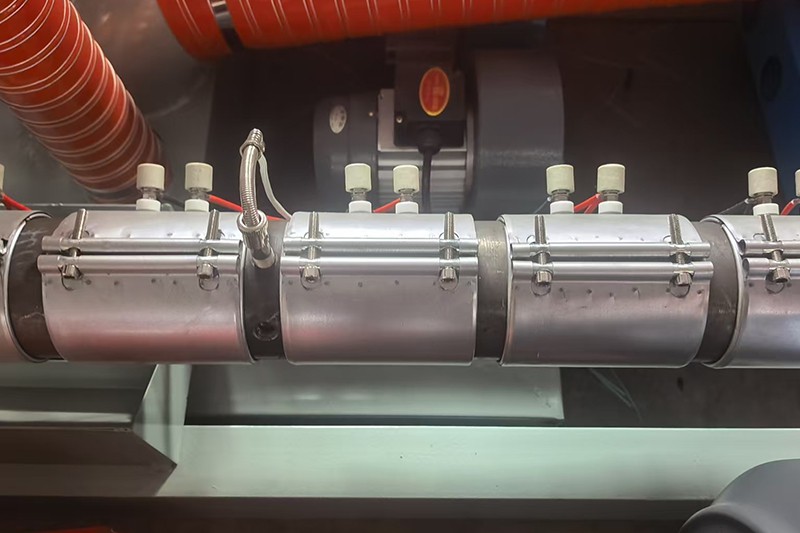

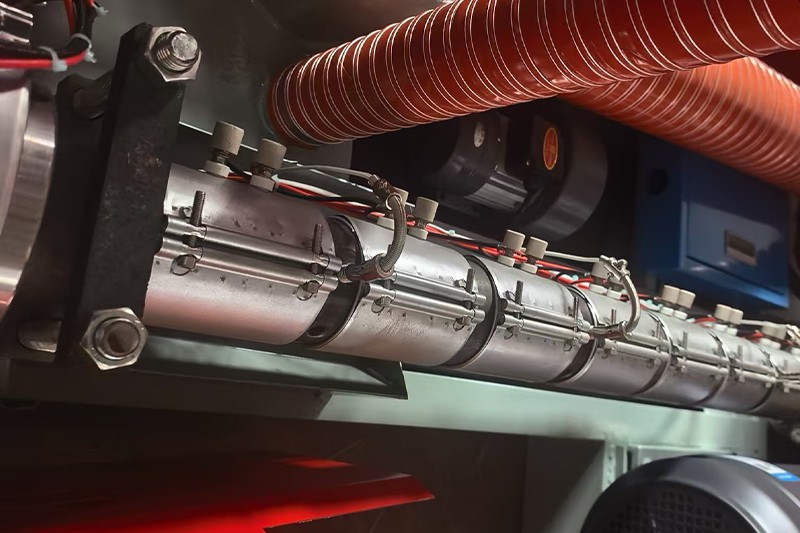

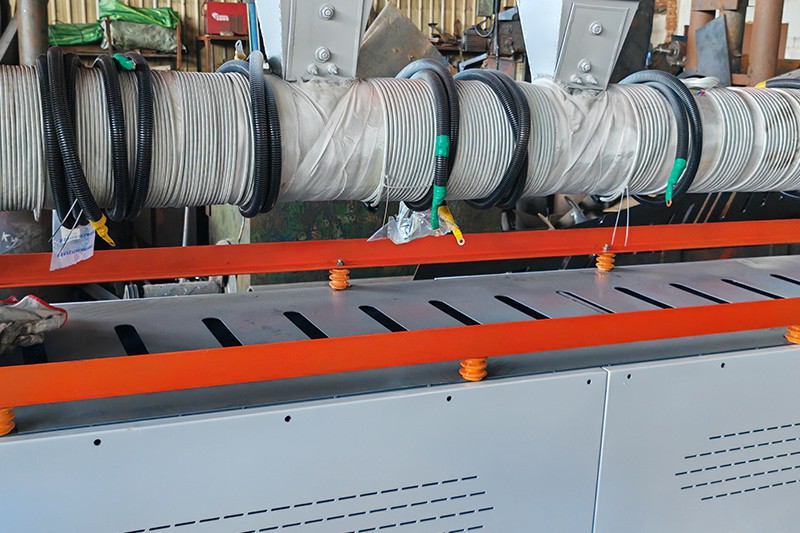

Electric induction heating systems are designed to heat the machine barrel and other processing equipment parts during the production of plastic recycling granules and perform a better plastic melting process. Compared to a common electric heater band heating device, an electric induction heating system features a faster heating speed, with a temperature rise of 1℃ / second. This saves up to 20% more power and significantly reduces customer production costs. The voltage can be adjusted according to different countries and regions, and module design is adopted so that replacement becomes easier.

Parameters
Type Heating wire Cross-sectional area of wire
5kw 28turns Single wire10mm²
15kw 28turns Single wire12mm²
30kw 50turns Single wire16mm²
50kw 48turns Single wire25mm²
60kw 45turns Single wire30mm²
80kw 42 turns (double wire) Double wire16mm²
Our factory has over 30 sets of CNC lathes in the production of plastic processing equipment, such as feeding sawing machine, CNC gantry machining center, CNC screw milling machine, CNC deep-hole boring machine, and cylindrical grinder. Meanwhile, with the adoption of more technologies into plastic recycling, CAD/CAM continues to grow in importance. Thus during the whole manufacturing process, our experienced engineers and technicians utilize CAD/CAM engineering approaches to optimize the entire operation. This allows us to supply high quality plastic machinery with optimal performance.
Tags
induction heating system plastic heater plastic process equipment
