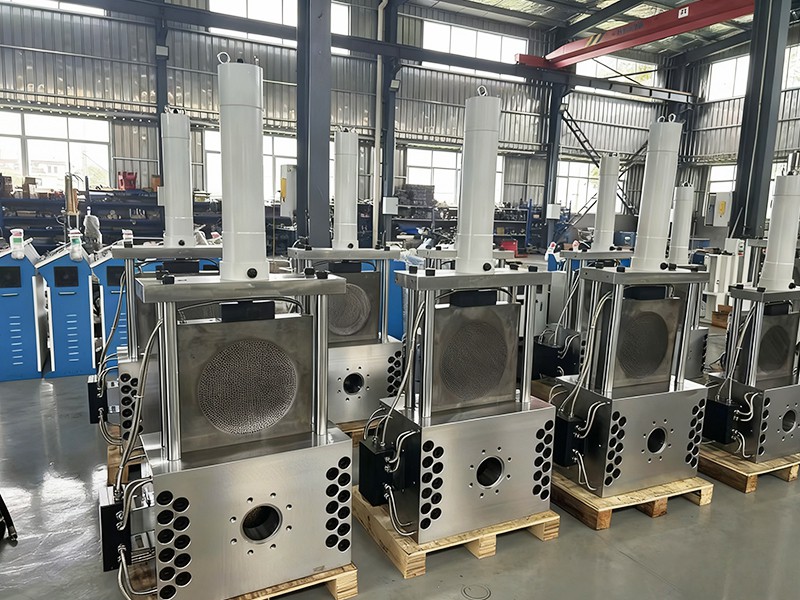

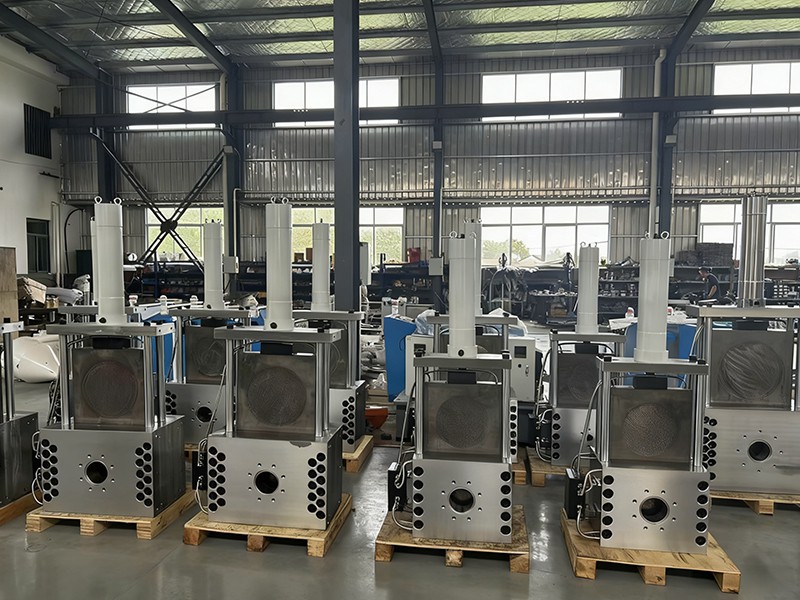

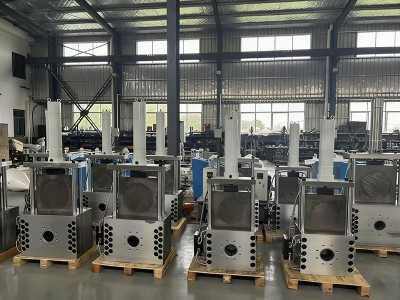

Hydraulic Slide Plate Screen Changer
The hydraulic slide plate screen changer features a solid main body with a sliding plate inside. Multiple screen positions that are arranged within the unit allows one screen to remain in operation while the other stays on standby. By switching between the two, filtration continues without stopping extrusion This screen changer is widely used for variety of materials, including PP, PE, PS, and ABS, as well as certain engineering plastics and rubber compounds. It is commonly used in extrusion and pelletizing lines where stable melt filtration is required.
Specifications
| Model | Filter Plate (Num.) | Single Plate Filter Area (mm²) | Dimensions (mm) | Drive Mode | Weight (kg) |
| 2/4 | 70686 | 300×500×1500 | Hydraulic | 700 | |
| 2/4 | 96211 | 350×700×1600 | Hydraulic | 800 | |
| 2/4 | 125664 | 450×800×1800 | Hydraulic | 1000 | |
| 2 | 159043 | 500×900×2000 | Hydraulic | 1500 | |
| 2 | 196350 | 600×1000×2200 | Hydraulic | 2000 |
Features
- A full metal sealing structure is used to prevent melt leakage during operation.
- Key pressure-bearing components are made from high-strength alloy steel. It can handle working pressures of up to 35 MPa.
- Pressure and temperature sensors monitor melt pressure and sealing condition in real time.
Our factory has over 30 sets of CNC lathes in the production of plastic processing equipment, such as feeding sawing machine, CNC gantry machining center, CNC screw milling machine, CNC deep-hole boring machine, and cylindrical grinder. Meanwhile, with the adoption of more technologies into plastic recycling, CAD/CAM continues to grow in importance. Thus during the whole manufacturing process, our experienced engineers and technicians utilize CAD/CAM engineering approaches to optimize the entire operation. This allows us to supply high quality plastic machinery with optimal performance.
